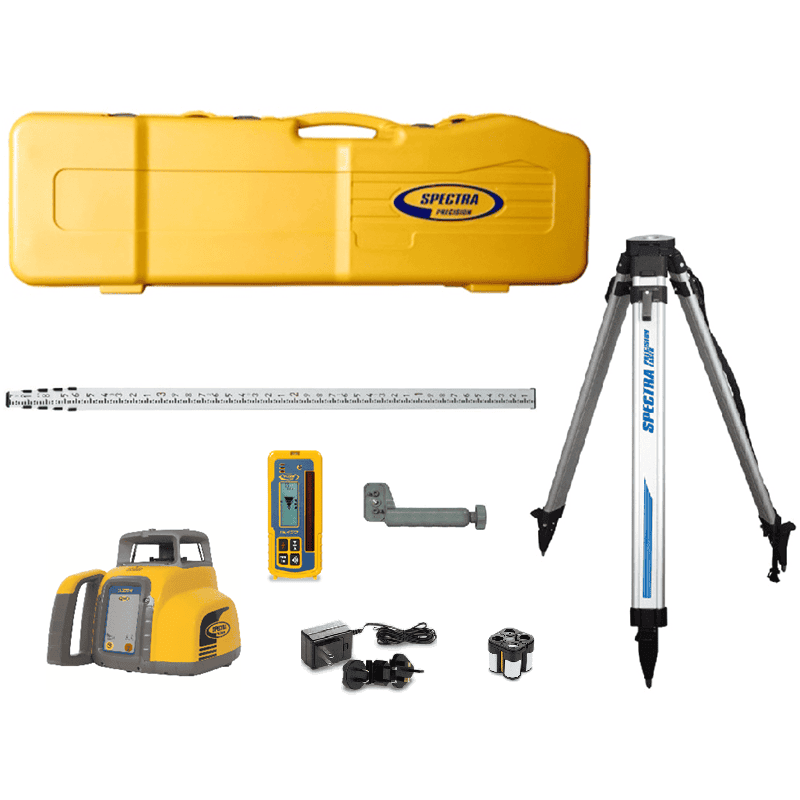

Spectra LL300N Laser Level Surveyors Package
Typically ships FREE in 2-4 business days
The LL300N Laser Level: simply accurate
The LL300N Laser Level is simple enough to be used for a one-man operation. Fully automatic, self-leveling, and with a one-button start up, the LL300N laser by Spectra Precision is rugged enough for the conditions of any jobsite. The highly visible laser of the LL300N is easy to see indoors and when paired with the HR320 laser receiver, the LL300N can also be used for outdoor applications.
With an optional remote control and laser receiver, the functionality of the LL300N can be increased even further, providing plenty of versatility for all of your leveling needs. In addition, the Height Change alert will notify you if there is any movement of the laser, helping to prevent costly rework.
Applications
- Elevation Control
- Setting and Checking Elevations on Small to Medium Job Sites
- Form and Footer Leveling
- Cut and Fill Estimates
- Excavation Leveling
- Driveway and ramp slopes
The LL300N is built tough
The LL300N is waterproof and dustproof with an IP66 rating. In addition, it can easily withstand drops of up to 3 feet (1m) onto concrete and tripod tip-overs of up to 5 feet (1.5m).The operating temperature is -4° to 122° F (-20° to 50° C) allowing for reliable operation in freezing temperatures and summer heat.
If something does go wrong, the LL300N comes with a 5-year warranty to protect your investment and lower repair costs.
Save time with automatic self-leveling
The LL300N Laser level begins self-leveling as soon as it is turned on. The leveling operation is indicated by a blinking LED and the unit will not spin up until it has reached both horizontal and vertical level.
Avoid mistakes with the height change alert
The LL300N laser level has a Height Change Alert function which is activated if the laser shifts out of level for any reason. If this function is activated, the laser beam will immediately turn off and the rotation will stop. A warning sound is emitted, and a warning LED starts to flash. This function prevents work from continuing at an incorrect level and is essential for preventing costly rework.
Save trips with the remote control
Reduce the chance of bumping the LL300N leveling laser with the RC601 remote control. The RC601 has a range of up to 100ft (30m) allowing for easy one-man layouts and saving trips back and forth across a jobsite.
With Four Package Options
The LL300N is available in four package varieties to offer versatility for the needs of your projects. If you’d like to create your own package, please use the form on our “Government Customers” page to reach out to us or give us a call: we’d love to build a custom package to suite your needs.
Spectra LL300N Laser Level Technical Specifications
- Laser Source: 650 nm, Class 2,3, 4mW
- Laser Accuracy: ±3/32in @100ft (±2.2mm @ 30m)
- Operating Range: 1,650ft (500m) with receiver
- Self-Leveling Range: ±5°
- Compensation Method: Electronic self-leveling
- Manual Slope Mode: Single access with optional RC601 remote control
- Power Source: 4 x “D” NiMH or alkaline batteries
- Battery Life: 90hrs (Alkaline) / 45hrs (NiMH
- Battery Status LED: Flashing Red LED
- Rotation Speed: 600 RPM
- Tripod Mount (Horizontal and Vertical): 5/8” x 11
- Out of Level Warning: Rotor stops, laser shuts off, HI LED Flashes
- Operating Temperature: -4° to 122°F (-20° to 50° C)
- Storage Temperature: -4° to 158°F (-20° to 70° C)
- IP Rating: IP66, waterproof and dustproof
- Size: 10.7 x 7.7 x 7.9 in (27.2 x 19.7 x 20.1 cm)
- Weight: 5.9lbs (2.7 kg)
- Warranty: 5 Years
