Spectra DG613 Pipe Laser Extra Package
Typically ships FREE in 2-4 business days
Save Time and Money on your Pipe Laying Projects with the DG613 Pipe Laser Extra Package
When you need to be sure that the grade is correct, use the DG613 Pipe Laser by Spectra Precision. It is perfect for pipe laying tasks such as grade applications, leveling, plumbing, and squaring.
The DG613 Extra Package includes the standard trivet (1248) for 8 inch pipelines as well as the large trivet (1230) for larger pipelines (10-15 inches). It also includes a vertical pole for readings outside of the trench. The DG613 pipe laser is designed to fit around tight inverts and delivers the most productive pipe laying experience on the market.
Simple to use, with a new menu driven user interface, the DG613 helps to improve efficiency and provide unprecedented performance and reliability. Let the DG613 eliminate the need for traditional pipeline grade survey methods that are time intensive and calculations that can be prone to error.
Want more information?
Call Us Now for a $50 Discount on the Spectra DG613 Pipe Laser Standard Package
DG613 Extra Package Product Features
- Range: up to 500ft (inside pipes) and 430ft (outside pipes)
- Manual grade entry
- Grade range of -12% to +40%
- Remote Controlled: to save trips into the trench or manhole
- Self-leveling: save time and stop worrying about leveling
- LCD screen
- LED plumb light
- Water-submersible to 10ft.
- Dust resistant
Municipal and Government Customers
We love our municipal and government customers. If you need to request a quote or have alternative payment requirements, please visit our government customers page.
Let the DG613 Extra Package do the calculations for you.
Self-Leveling: The DG613 features the largest automatic leveling range in the industry, providing quick and easy setups regardless of grade. Unlike traditional pipe lasers, the unit eliminates the need for rough leveling and minimizes crew training time. Simply set up the laser in the pipe, manhole, or open cut without the need to swivel or rough level the unit.
Line Alert: This unique feature is ideal for working in high-vibration or wet conditions where the pipe lasers may be disturbed. The beam flashes to notify you that the setup line has been disturbed, eliminating the necessity of rework. Combined with the self-leveling warning, you can complete the job correctly, on time and on budget!
Line Set: The Line Set/Check capability allows you to raise the beam up to 100% outside of the trench for fast line setup or checking. Raising the laser beam out of the trench to an above-ground stake saves you time—instead of having to move the excavator offline during setup of the pipe laser, you can get on with your job. In addition, the Line Set-Check feature is ideal for rechecking the line for pipe jacking after each push.
Target: The patented Target Lens collects the beam and transfers the spot up to the pipe layer’s angle of view, making it very easy to see the laser beam (inclusive in the extra package).
Use the RC603 to Control the DG613 Extra Package Remotely
The RC803 remote control works via radio at 130 m (430 ft) or infra-red at 150 m (500 ft) for both “Over the Top” set-up and in pipe/trench set-up.
The DG613 Pipe Laser Extra Package is built TOUGH
Spectra Precision’s pipe lasers are extremely rugged and thrive in demanding underground conditions. The DG613 has an IP68 protection rating for dust resistance and water submersion up to 10 feet. If something should go wrong, the laser comes with a 5-year manufacturer’s warranty.
The NiMH battery pack is rechargeable and provides up to 40 hours of power, in case you forget to charge your device the night before. If you forget to charge the battery pack, the DG618 can operate on 4 C cell alkaline batteries.
Included in the DG613 Pipe Laser Extra Package
- DG613 Laser
- 1248 Adjustable Trivet Plate (for 8inch pipes) – for centering the laser in the pipe.

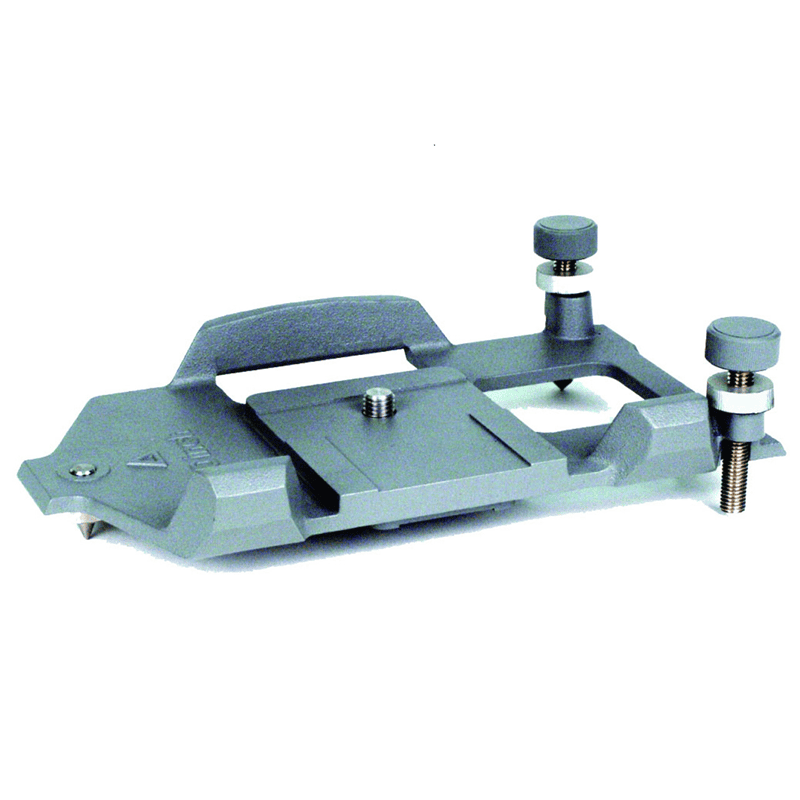

- 1230 Adjustable Trivet Plate (for 10, 12, and 15inch pipes)

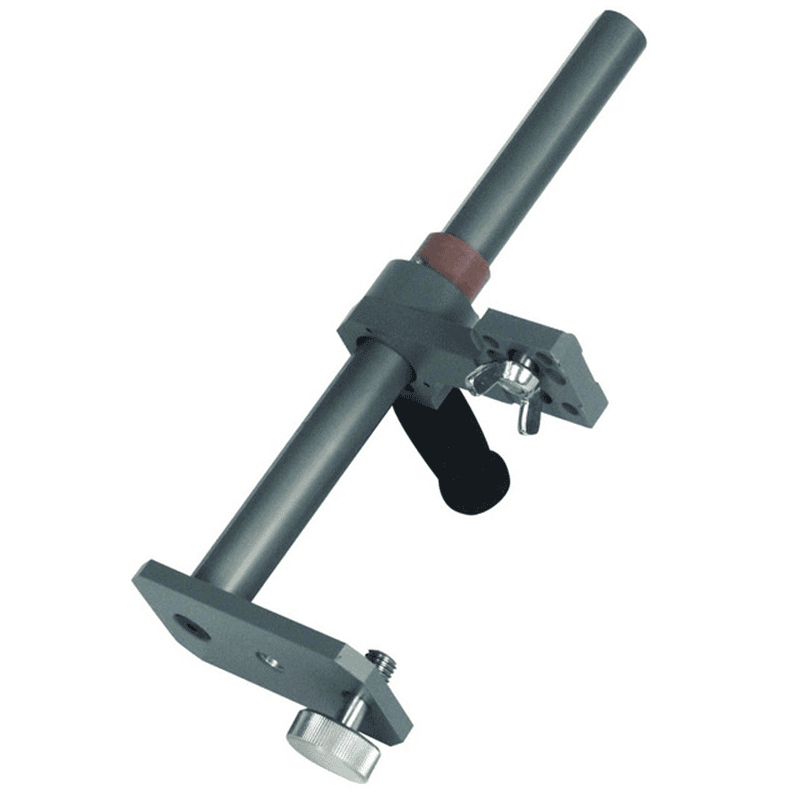

- 1239 Vertical Pole
- RC803 IR/Radio Remote Control
- 956 Target Lens
- NiMH battery pack
- Smart charger
- Hard plastic carrying case
- Operating Manual
- 5 Year Warranty
Spectra DG613 Pipe Laser Extra Package Technical Specifications
Laser Specifications
- Accuracy, Self-Leveling (level): ± 1.5 mm/30 m, (1/16 in @ 100 ft)
10 arc seconds (a), (c) - Operating range: up to 150 m (500 feet) (b)
- Laser type: DG613: red diode laser 600 - 680 nm
- Laser class: Class 3A/3R, 5mW OR Class 2
- Self-leveling range
- Longitudinal: Over the entire grade range with automatic cross-axis compensation
- Grade range: -12% to +40%
- Line Range: 20° ±1°
- Leveling indicators: LCD indications; beam and LED flash
- Power source: 10000mAh NiMH battery pack
- Battery life: DG613: red - 40 hours NIMH (a)
- Temperature compensation: Yes
- Length: 25 cm (9.8 in)
- Diameter: 13,5 cm (5.3 in)
- Operating temperature: -20°C to 50°C (-4°F to 122°F)
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
- Tripod attachments: 5/8 x 11 horizontally
- Dust and Waterproof: IP68
- Weight: 3.98 kg (6.61 lbs)
- Low voltage indication: LCD battery indicator
- Low voltage disconnection: unit shuts off
RC803 Specifications
- Radio operating range (Over the Top)1,2,5: up to 130 m (425 ft) (a), (b), (d)
- IR operating range (front)1,2: up to 150 m (500 ft) (a), (b)
- Power source: 2 x 1.5V AA alkaline batteries
- Battery life1: 130 hours
- Dust and Water proof: IP66
- Weight (incl. batteries): 0.26 kg (0.57 lbs.)
(a) at 21° Celsius (70° F) (b) under optimal atmospheric circumstances (c) along the axis (d) depending on product height (typ.: three feet / one meter)
