Leica Rugby 640 Rotary Laser (Green)
Typically ships FREE in 2-4 business days
The Leica Rugby 640 Rotary Laser - Green Beam
The Rugby 640 Rotary Laser by Leica Geosystems is a simple indoor and outdoor levelling solution for general contractors. This laser system can perform horizontal, vertical, and simple slope/grading tasks quickly and reliably.
Applications
- Concrete pouring and levelling
- Formwork levelling
- Foundation setting
- Footing construction
- Drywall installation
- Grading and excavation
- Site preparation
- Road, runway, and landfill construction
- Agricultural land levelling and drainage
- General construction vertical alignment such as anchor bolt and concrete form alignment
- Sports fields, tennis courts, driveways and landscaping

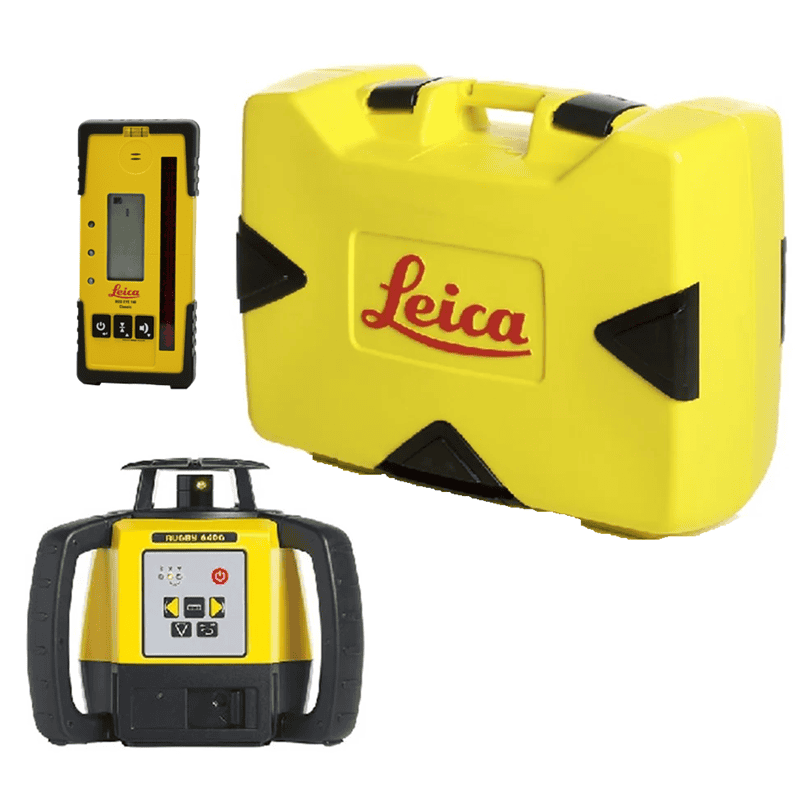

In the Box
- Rugby 640 Laser
- Laser Receiver (Rod Eye 120 or 140)
- Rod Eye mounting bracket
- Batteries (Alkaline or NiMH rechargeable)
- Battery Charger (with rechargeable kit)
- Remote Control (optional)
- 3 Year Warranty
- Hard Carrying Case
Rod Eye 120 or 140 Receiver
Available with either the Rod Eye 120 or 140 laser receiver. The Rod Eye 120 has a receiving window of 2.76" and working range of 2,950 ft. The Rod Eye 140 is even more powerful with a 5" receiving window and a working range of 4,430 ft.
Easy Set up: Start Working Within 30 Seconds
Time on the jobsite is valuable. Where every minute counts, minimizing set up time means maximizing work time. If set up within the self-levelling range, the Rugby automatically levels to create an accurate horizontal plane of laser light. Once the Rugby 640 has levelled, the head will start rotating and the Rugby is ready for use.
Horizontal and Vertical Applications
The Rugby 640 can be used to set vertical or horizontal lines. This is in addition to its function as a single grade laser for grading jobs. The Rugby 640 is also compatible with the Leica RC400 remote control which allows the operator to make adjustments at a distance of up to 650 ft (200m).
Save Costly Rework: The “Elevation Alert” lets You know if the Laser has Shifted:
The Elevation Alert function is automatic and turns on every time the Rugby 640 is activated. This function prevents incorrect work caused by movement or settling of the tripod that would cause the Rugby to shift.
The Elevation Alert function becomes active and monitors the movement of the Rugby 30 seconds after it has completely self-leveled. If the Rugby gets disturbed, the Elevation (H.I.) Alert screen is displayed and the Rugby beeps rapidly.
Built TOUGH
With an IP67 water and dust protection rating, the Rugby 640 laser can withstand the harshest jobsite conditions. Coupled with Leica Geosystem’s 3-year warranty, the Rugby 640 will provide years of reliable service.
Available in RED
For easier viewing in outdoor applications, or for sites where workers may have color blindness, the Rugby 640 is also available with a red beam. The product page for the Rugby 640 in red can be found at this link: Rugby 640 Rotary Laser (Red).
Leica Rugby 640 Rotary Laser Technical Specifications
Rugby 640 Rotary Laser
- Functions: Self-leveling, horizontal manual slope in one axis, sleep mode
- Laser Class: Class 2
- Laser Type: 635 nm (red), 520nm (green)
- Accuracy: ± 3/32” at 100ft (2.2mm at 30m)
- Self-Leveling Range: ± 5°
- Plumb Down: 10°, 45°, 90°
- Rotation: 0, 120, 300, 600 rpm
- Max Range (red): 1,650 ft / 500m (Rod Eye 120), 2,000 ft / 600m (Rod Eye 140)
- Max Range (green): 1,300 ft / 400m (Rod Eye 120)
- Operation Time (Alkaline Battery): 60 hrs
- Operation Time (Li-ion Battery): 40 hrs
- Working Temperature: -4 to +122° F ( -20 to +50° C)
- Protection: IP67
- Warranty: 3 years, no cost
Remote Control RC400
- Operating Range (radius): 650ft (200m)
- Batteries: Two AA alkaline
- Battery Life (typical usage): 70 hrs
Rod Eye 120
- Maximum Working Diameter: 2,950 ft (900m)
- Extended Detection Window: 2.76” (70mm)
- Detection Bandwidth: Fine (± 1mm), Medium (± 2mm), Coarse (± 3mm)
- Warranty: 3 years, no cost
Rod Eye 140
- Maximum Working Diameter: 4,430 ft (1,350m)
- Extended Detection Window: 5” (120mm)
- Detection Bandwidth: Fine (± 1mm), Medium (± 2mm), Coarse (± 3mm)
- Warranty: 3 years, no cost
