Leica Rugby 610 Rechargeable Rotary Laser
Typically ships FREE in 2-4 business days
Grading is easy with the Rechargeable Rugby 610
The automatic self-leveling Rugby 610 Rotary Laser by Leica Geosystems is the simplest rotary laser in the industry. Just place the laser on a tripod or other surface, press the single button, and allow the laser to level itself and spin up. The learning curve for this instrument is as close to zero as possible!
Self-Leveling for easy set up: Start work within 30 seconds
Time on the jobsite is valuable. Where every minute counts, minimizing set up time means maximizing work time. If set up within the self-levelling range, the Rugby automatically levels to create an accurate horizontal plane of laser light. Once the Rugby 610 has levelled, the head will start rotating and the Rugby is ready for use.
Save Money with Rechargeable Batteries
Leica geosystems has upgraded their popular Rugby 610 laser with rechargeable NiMH batteries. No more running to the store to pick up batteries and you can keep working all day and beyond with the 40+ hours of NiMH battery life.
Applications
- Grading and excavation
- Site preparation
- Leveling concrete forms and footers
- Road, runway, and landfill construction
- Agricultural land levelling and drainage
- General construction vertical alignment such as anchor bolt and concrete form alignment
- Sports fields, tennis courts, driveways and landscaping

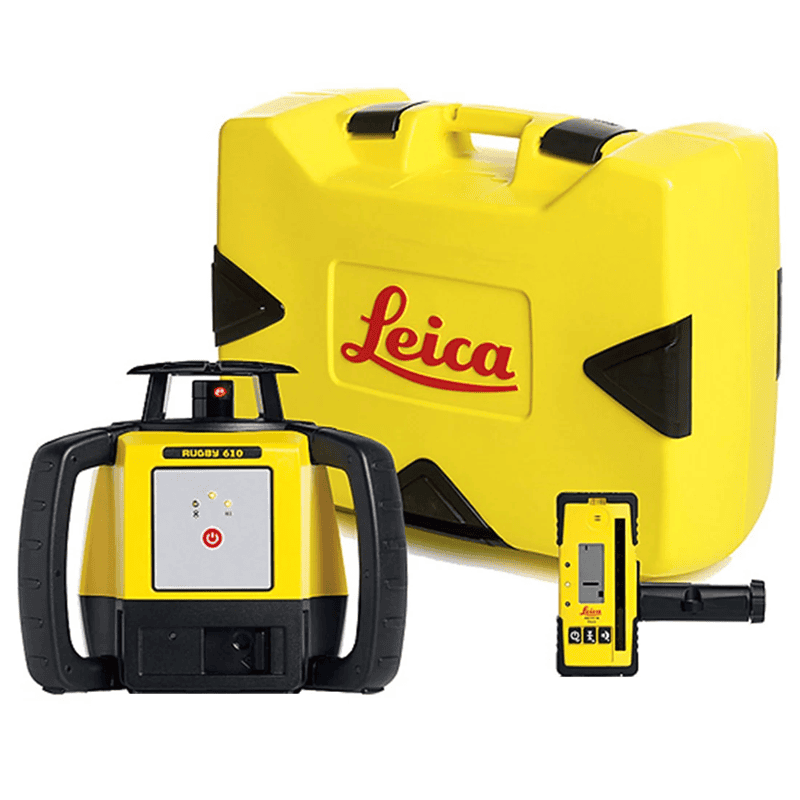

In the Box
- Leica 610 Rotary Laser
- Laser Receiver (Rod Eye 120 or 140)
- NiMH Rechargeable Batteries
- Battery Recharger Kit
- User Manual
- Hard Carry Case
Rod Eye120 vs 140
The Leica 610 is available with either the Rod Eye 120 or Rod Eye 140 laser receiver. The table at the right offers a comparison.
Avoid costly rework with the “Elevation Alert”
The Elevation Alert function is automatic and turns on every time the Rugby 610 is activated. This function prevents incorrect work caused by movement or settling of the tripod that would cause the Rugby to shift.
The Elevation Alert function becomes active and monitors the movement of the Rugby 30 seconds after it has completely self-leveled. If the Rugby gets disturbed, the Elevation (H.I.) Alert screen is displayed and the Rugby beeps rapidly.
The Rugby 610 is built TOUGH
With an IP67 water and dust protection rating, the Rugby 610 laser can withstand the harshest jobsite conditions. Coupled with Leica Geosystem’s 3-year warranty, the Rugby 610 will provide years of reliable service.
Technical Specifications
Rugby 610 Rotary Laser
- Functions: Self-leveling, one button laser, plumb up.
- Laser Class: Class 1
- Laser Type: 635 nm (red)
- Accuracy: ± 3/32” at 100ft (2.2mm at 30m)
- Self Leveling Range: ± 5°
- Rotation: 600 rpm
- Max Range: 2,600 ft / 800m (Rod Eye 120)
- Max Range: 3,600 ft / 1100m (Rod Eye 140)
- Operation Time (Alkaline Battery): 60 hrs
- Operation Time (Li-ion Battery): 40 hrs
- Working Temperature: -4 to +122° F ( -20 to +50° C)
- Warranty: 3 years, no cost
Rod Eye 120
- Maximum Working Diameter: 2,950 ft (900m)
- Extended Detection Window: 2.76” (70mm)
- Detection Bandwidth: Fine (± 1mm), Medium (± 2mm), Coarse (± 3mm)
- Warranty: 3 years, no cost
Rod Eye 140
- Maximum Working Diameter: 4,430 ft (1,350m)
- Extended Detection Window: 4.7” (120mm)
- Detection Bandwidth: Fine (± 1mm), Medium (± 2mm), Coarse (± 3mm)
- Warranty: 3 years, no cost
