David White LT8-300 Universal Line Transit
by DW SitePro
$1,075.00
Typically ships FREE in 2-4 business days
David White LT8-300 Universal Line Transit
The LT8-300 universal optical line transit by DW SitePro is a versatile tool that can be used for pipe laser alignment or as a level-transit. It has an accuracy of 5 minutes and a range of 400 ft (120 m).

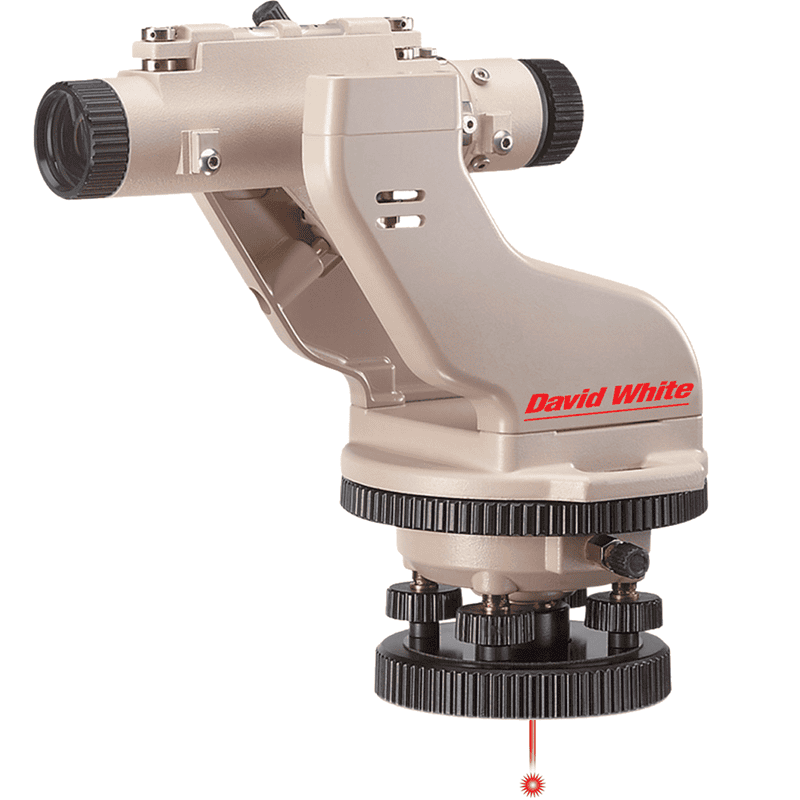

Set up fast with the laser plummet
The LT8-300 is available with an optional laser plummet to reduce set up time and increase measurement accuracy.
Applications
- Gravity flow pipe laser setup
- Measure angles
- Establishing 90-degrees reference lines
- Anchor bolt alignment
- Aligning forms, walls
In the Box
- David White LT8-300 Line transit
- Rain Hood
- Objective Lens
- User Manual
- Hard Plastic Carry Case
- 2 Year Warranty
Product features
- 26X optics
- ±3/16-in at 150-ft (4.75mm at 45m) leveling accuracy
- Up to 400-ft (120m) range
- Optional laser plummet for quick and easy setup
- Horizontal circle, lock and tangent
- Glass reticle with stadia lines for measuring distance (ratio 1:100)
- Plate vial for rough leveling and general plummeting requirements.
David White LT8-300 Technical Specifications
- Range: Up to 400ft (122m)
- Accuracy: within 3/16in at 150ft (5mm @ 45m)
Telescope:
- Length: 8.5in (216mm)
- Minimum Focus: 6ft (1.8m)
- Aperture: 1.257 in (32mm)
- Power: 26X
- Field of View: 1’9” @ 100ft (54cm @ 30m)
- No. of Lenses: 8
- Stadia Ratio: 1:100
Horizontal Circle:
- Graduation diameter: 4-5/8 in (117mm)
- Graduations: 1°
- Numbers: Each 10°, 0-90-0°
- Vernier: Double direct to 5 min.
Center:
- Type: Wide-stance dual row ball bearings
- Level Vial: Accuracy: 120 sec. per 2mm
- Plate Vial: Accuracy: 360 sec. per 2.5mm
